CONIX® DUO COPPER


When applicable

CONIX®DUO COPPER resolves any smoke exhaust problem for civil and industrial systems (working temperatures up to 600°C with maximum 1000°C peaks).
It offers highly aesthetic features and can be used to create chimneys for single flues or grouped flues for forced draught C type equipment or branched grouped flues for natural draught B type equipment.

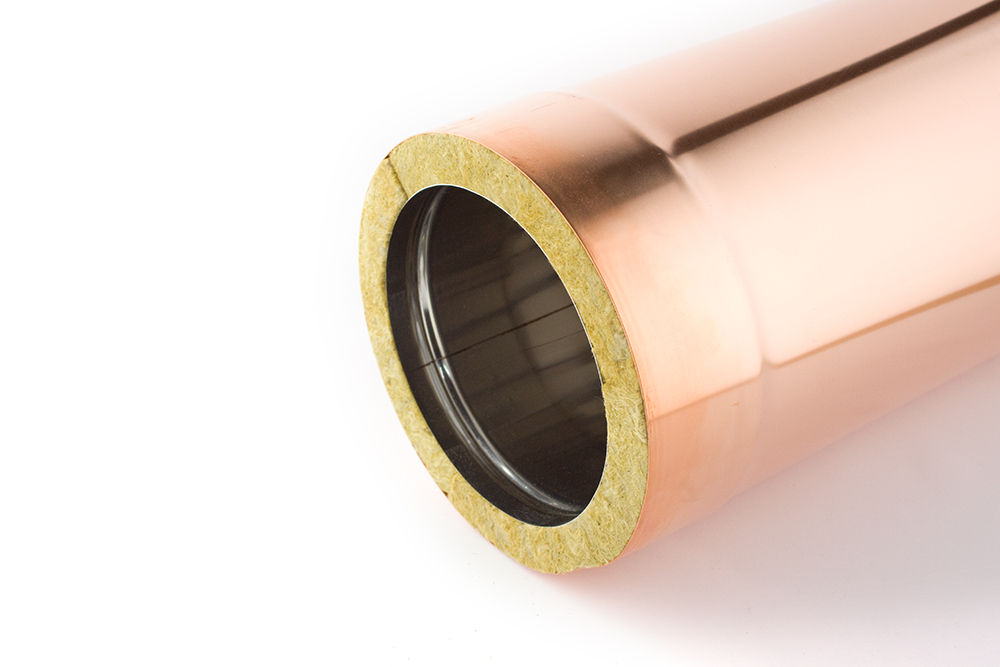

The CONIX®DUO COPPER-JR dual wall chimney system is made up of three concentric layers of modular circular section parts.

Available diameters (mm):
80 - 100 - 130 - 150 - 180 - 200 - 250 - 300 - 350 - 400 - 450 - 500 - 550 - 600

1 -Internal wall in direct contact with smoke, made of AISI 316L type austenitic stainless steel, laser or Tig welded with certified welding processes.
2 - Intermediate layer acts as insulation, made up of high density (110 kg/m3) radiating basaltic rock wool, 25mm thick and 0.058W/mK conductivity (at 200°C temperature).
3 - External wall designed to protect and encase the insulation, made of natural copper or AISI 304 type copper-plated austenitic stainless steel, laser or Tig welded with certified welding processes.

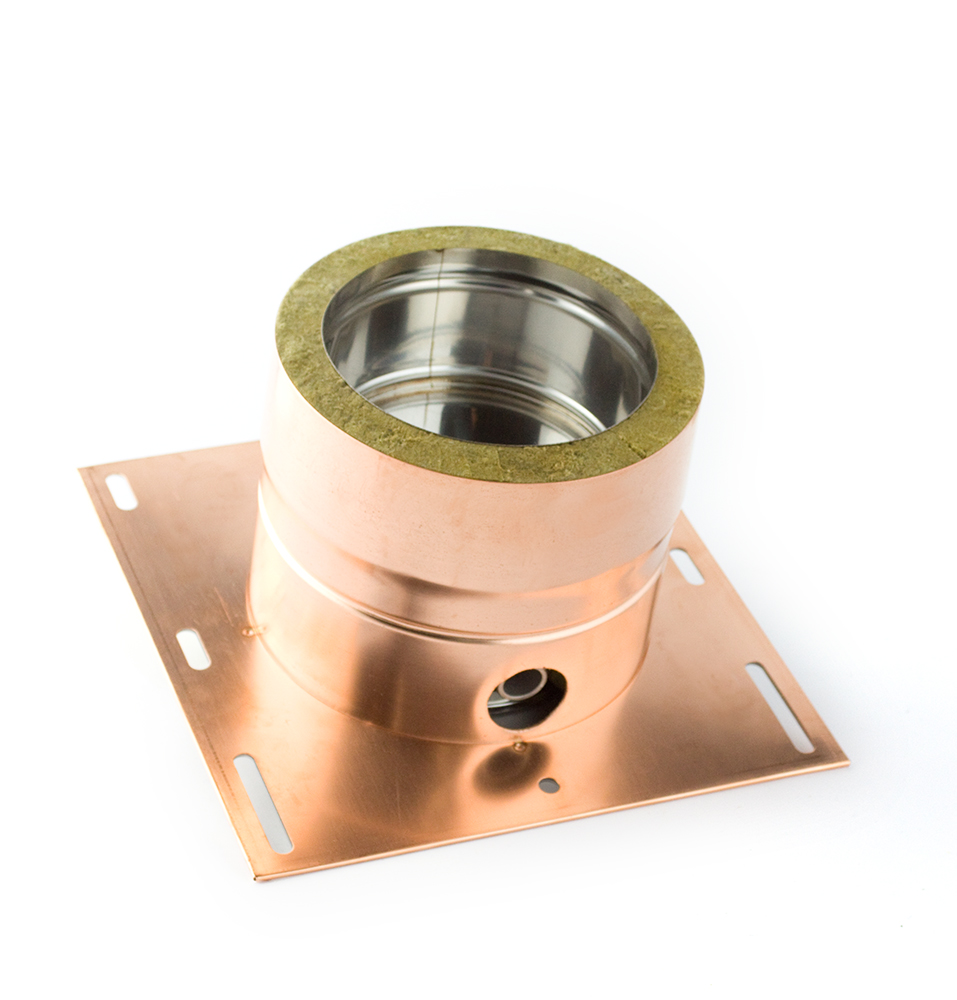

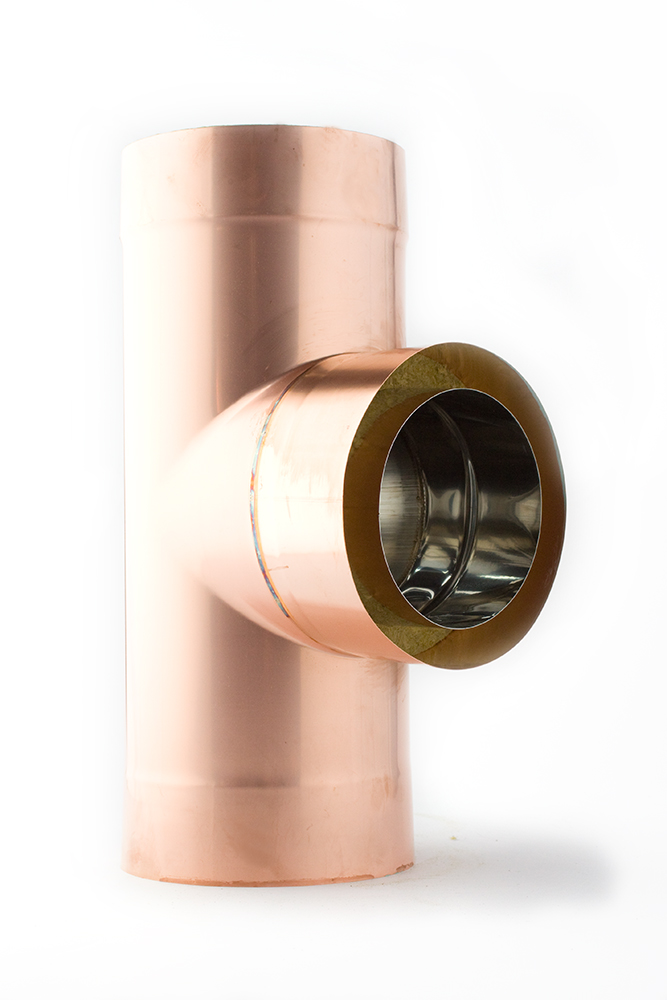

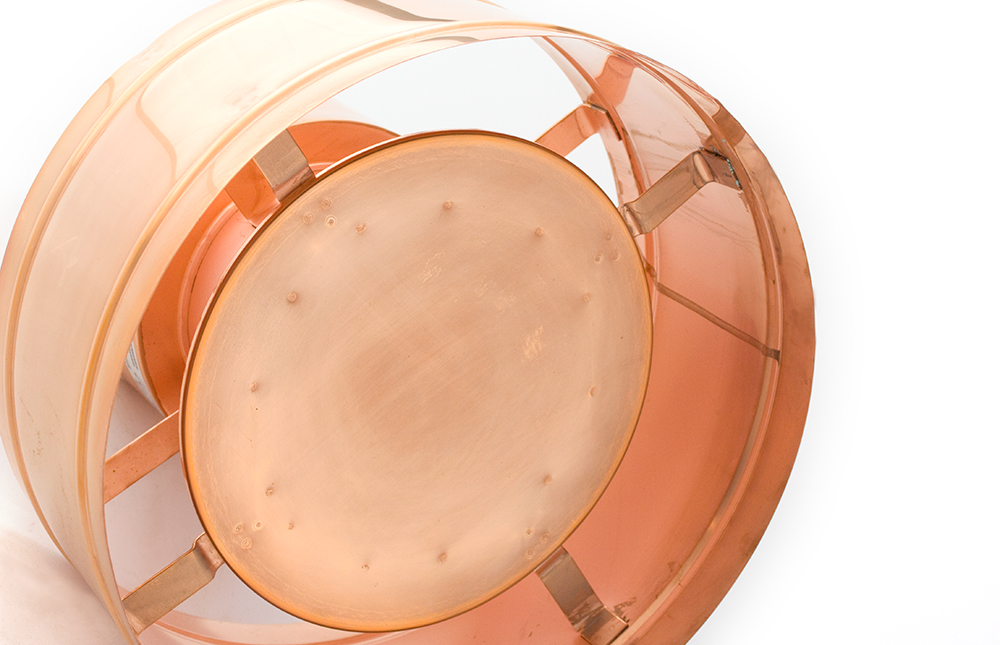

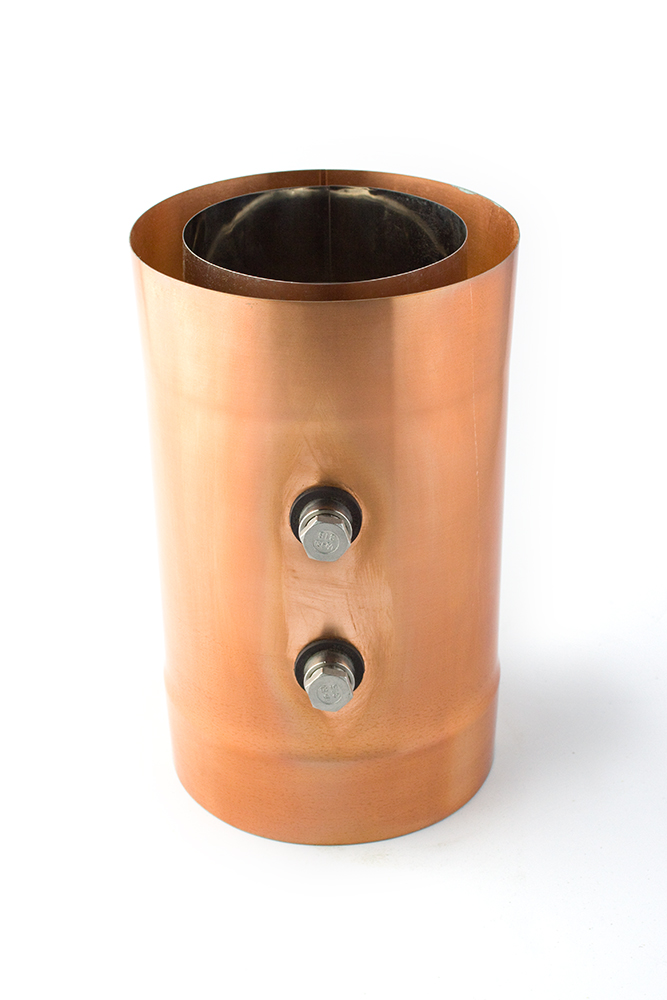

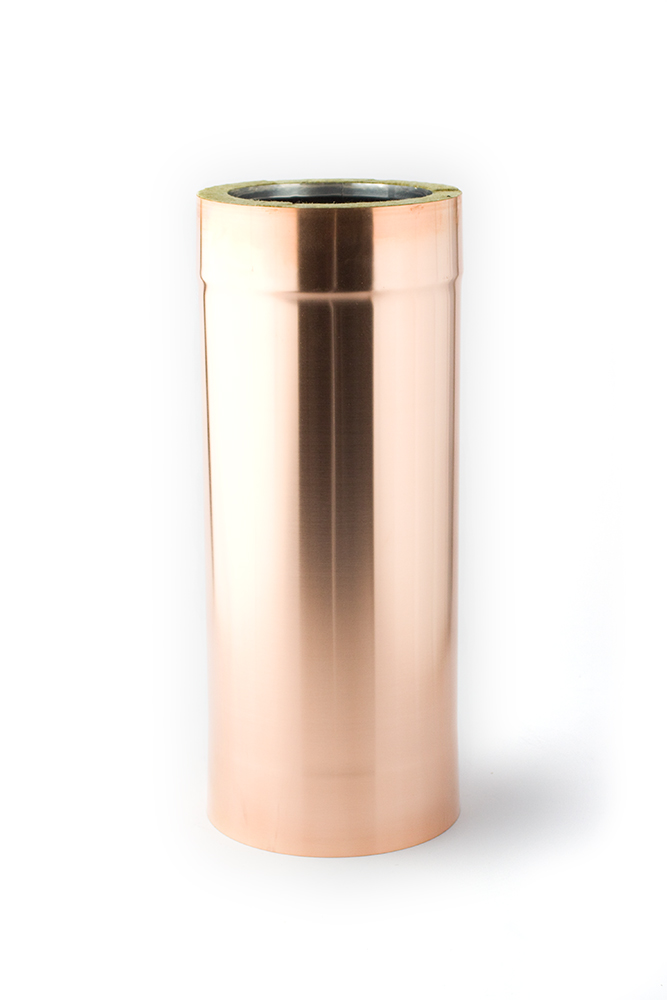

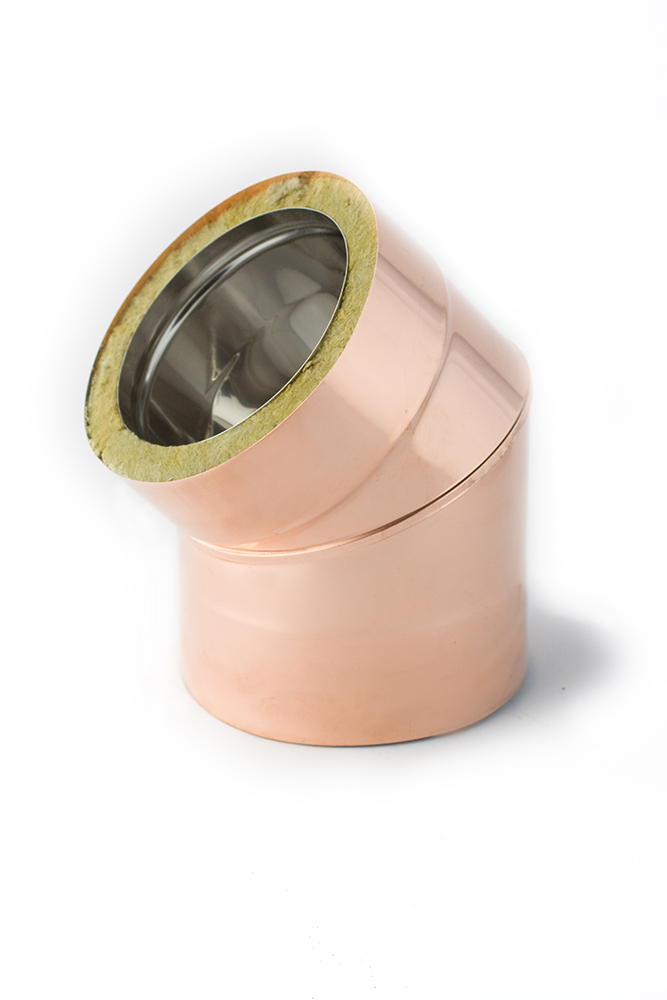

Photogallery
