CONIX® DUO


When applicable
CONIX®DUO
was designed for fast and easy beautiful installations in full view.

CONIX®DUO's significant aesthetic advantages:

- Joints are practically invisible from the outside
- No unsightly straps
- Semi-glossy stainless steel external finish that reduces annoying light reflections and perfectly matches the architectural context.
- Colour variations available, finished pieces produced on order in any RAL colour.

Available diameters (mm):
internal measurements 80 - 100 - 130 - 150 - 180 - 200 - 250 - 300 - 350 - 400 - 450 - 500 - 550 - 600 - 700* - 800* - 900* - 1000* - 1100 - 1200*

Steel quality
internal wall:
AISI 316L steel with BA (polished) finish
external wall:
AISI 304 steel with 2B (semi-glossy) finish
insulation thickness in mm: 25/50
steel thickness in mm: 0,4/0,5/0,6/0,8/1,0

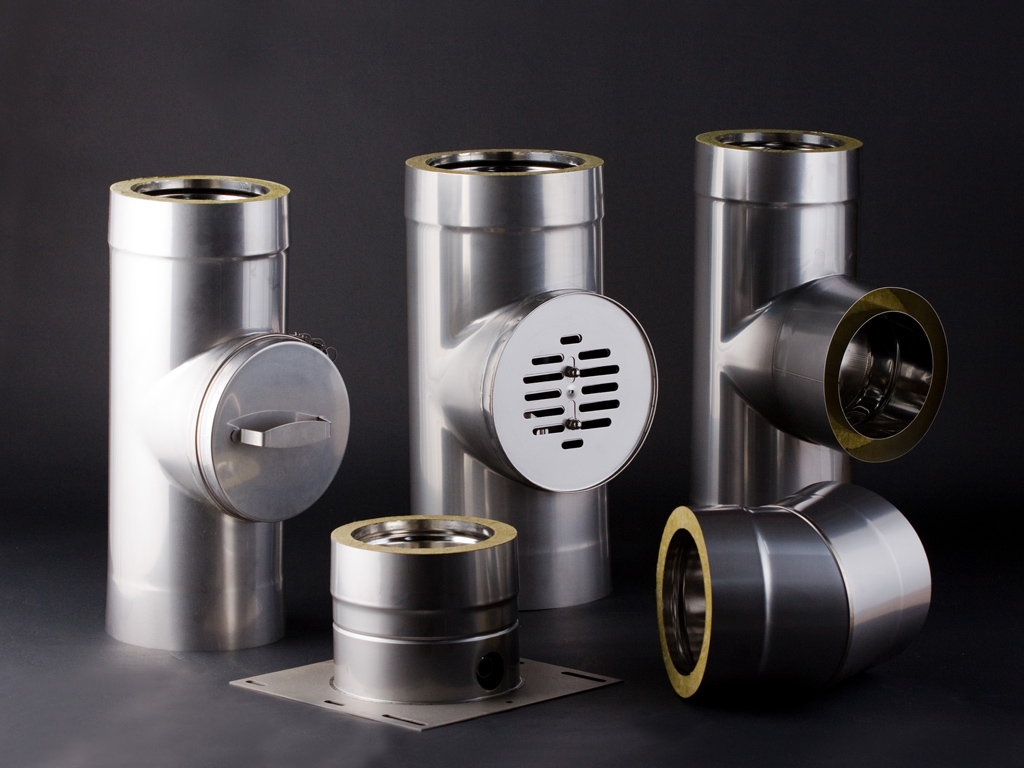

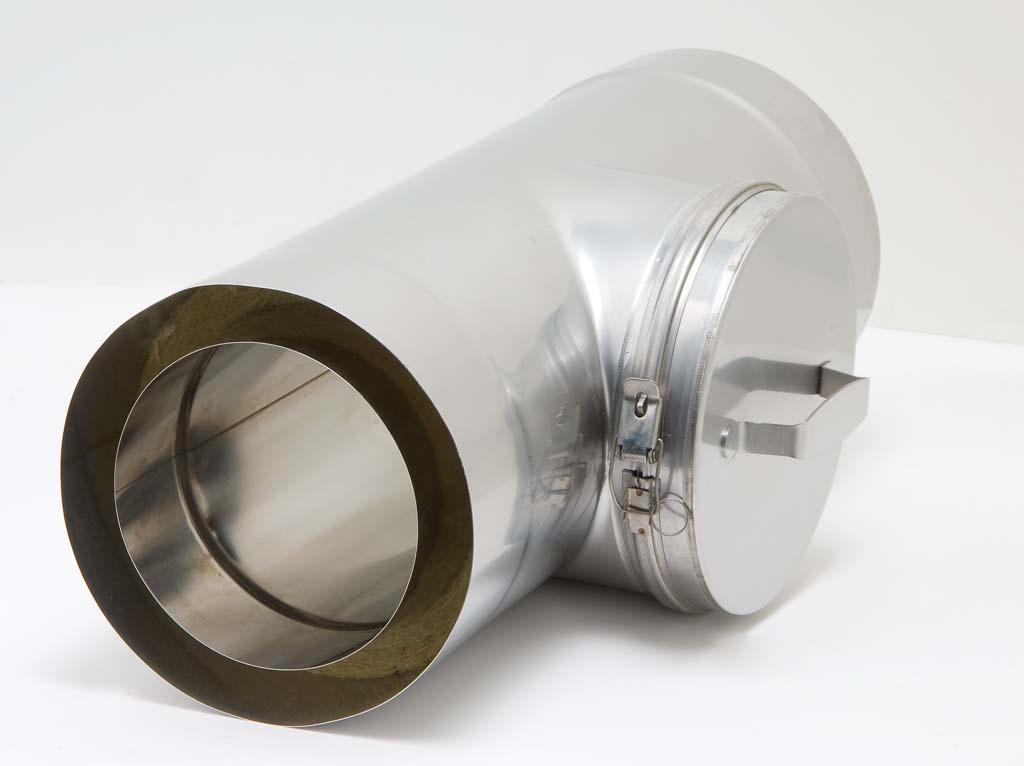

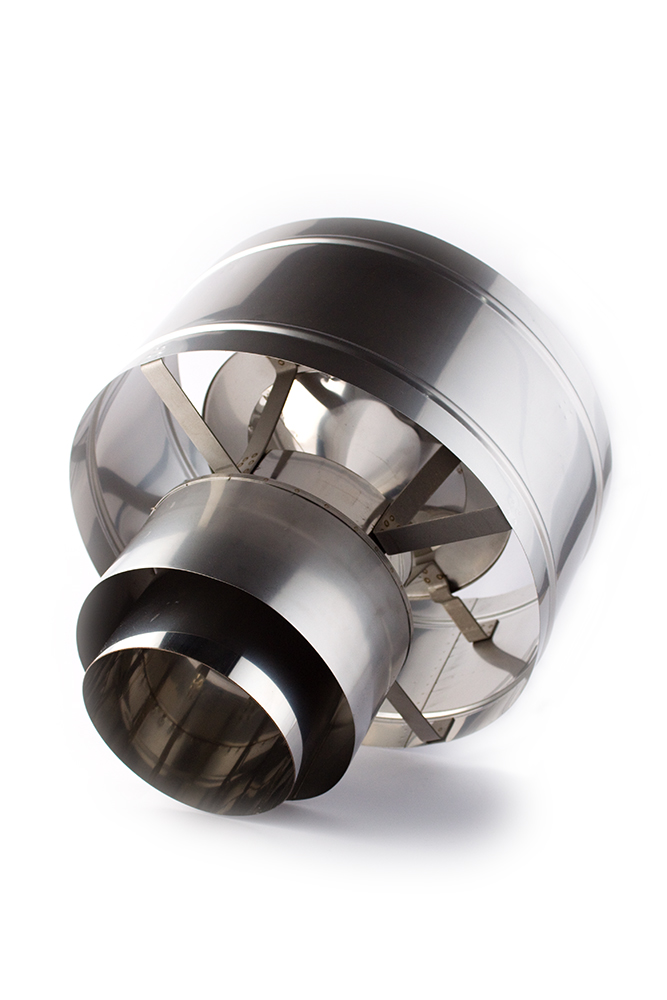

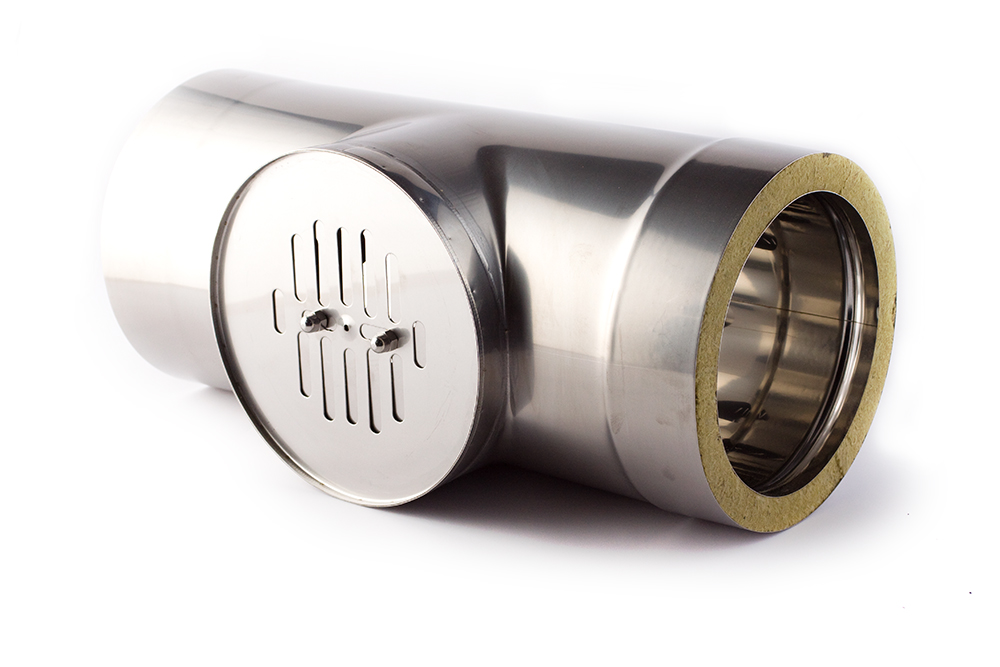

Custom joints and accessories
The CONIX® range is able to meet all normal installation needs.
Camini Wierer is able to quickly create custom joints and accessories for any need.

RAL scale colours

CONIX®DUO
resolves any smoke exhaust problem for civil and industrial systems (working temperatures up to 600°C with maximum 1,000°C peaks) and can be used to create chimneys for single flues or grouped flues for forced draught C type equipment or branched grouped flues for natural draught B type equipment.

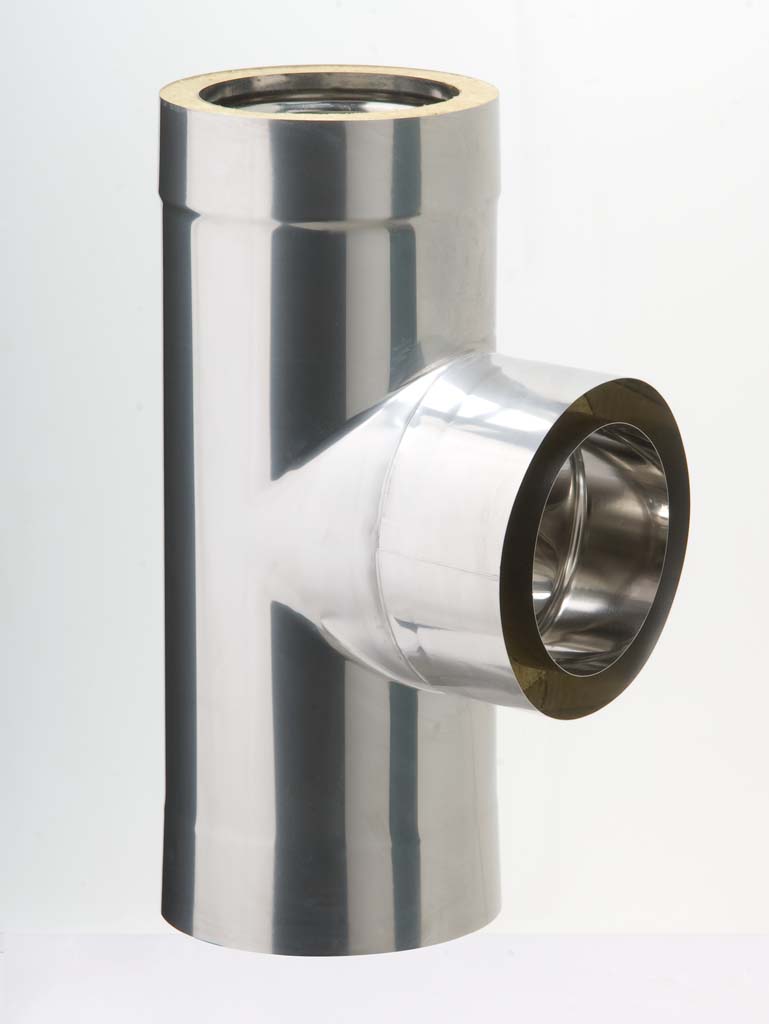

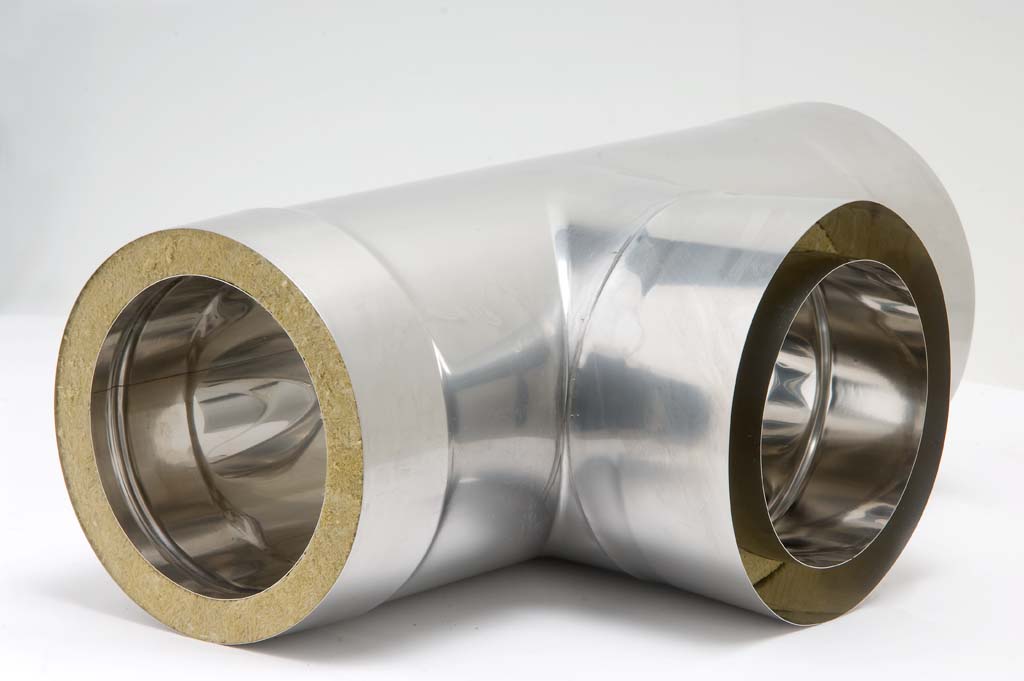

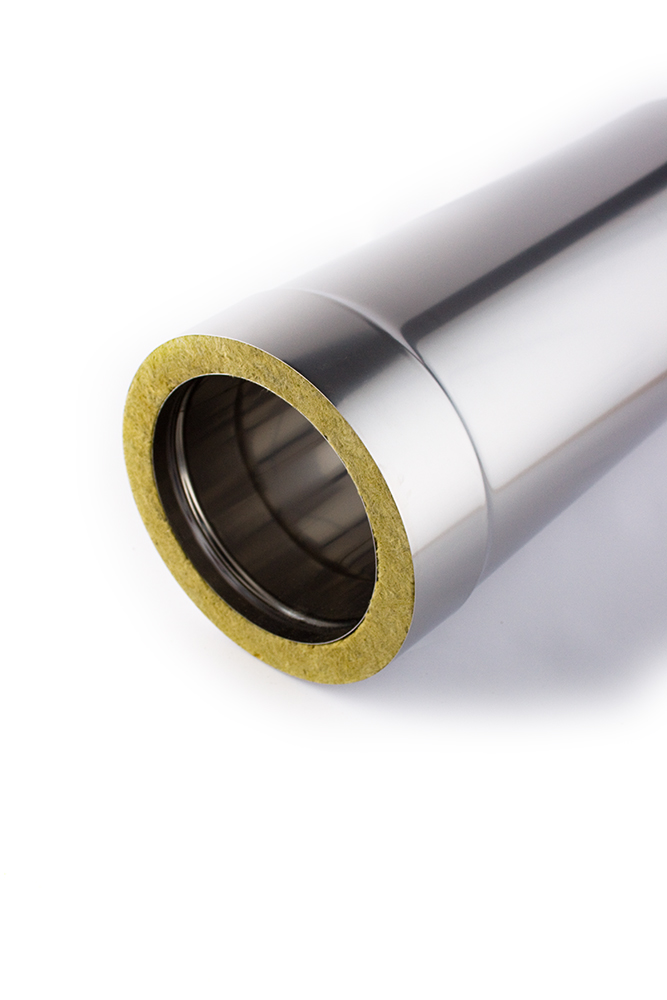

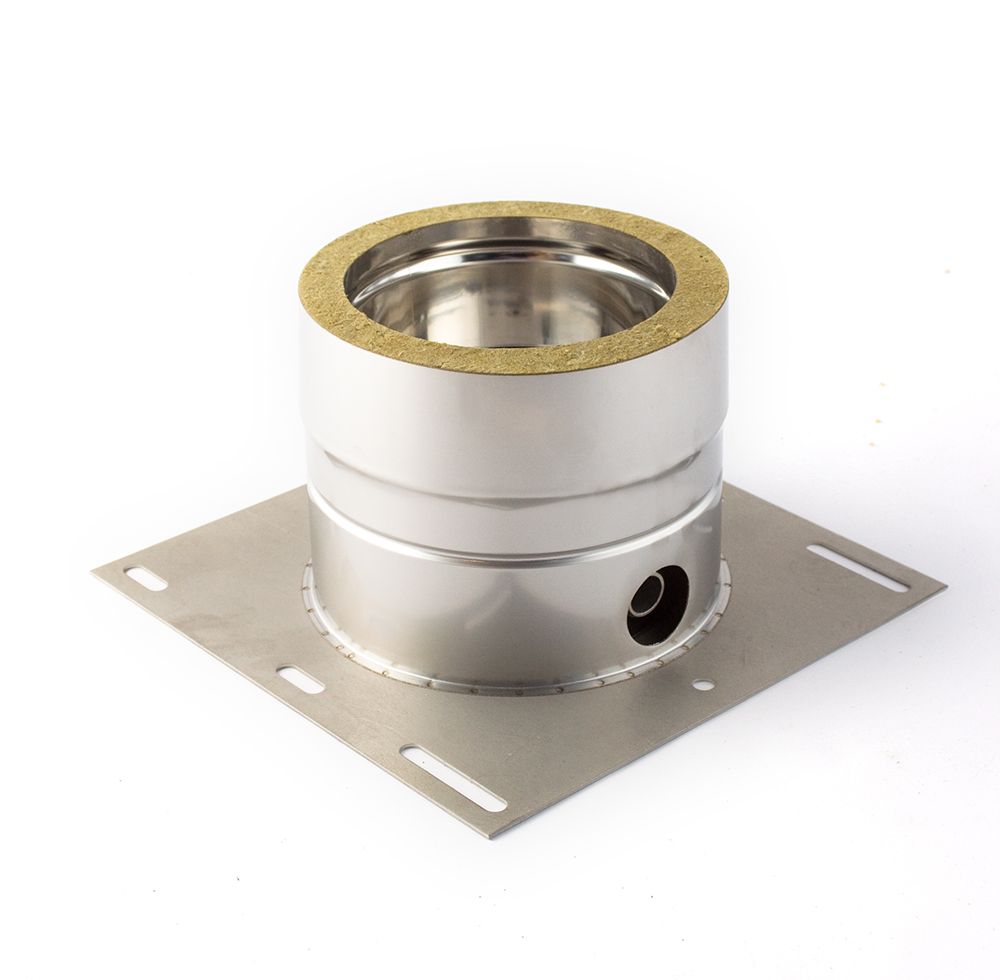

The CONIX®DUO-JI dual wall chimney system is made up of three concentric layers of modular circular section parts.

1 - Internal wall in direct contact with smoke, made of AISI 316L type austenitic stainless steel, laser or Tig welded with certified welding processes.
2 - Intermediate layer acts as insulation, made up of high density (110 kg/m3) radiating basaltic rock wool with 25/50 mm thickness and 0.058W/mK conductivity (at 200°C temperature).
3 - External wall designed to protect and encase the insulation, made of AISI 304 type austenitic stainless steel, laser or Tig welded with certified welding processes.
